| DN10(3/8") | DN15(1/2") | DN20(3/4") | DN25(1") | DN40(1-1/2") |
| DN50(2") | DN80(3") | DN100(4") | DN125(5") | DN150(6") |
| DN200(8") | DN250(10") | DN300(12") | DN350(14") | DN400(16") |
| DN450(18") | DN500(20") | DN550(22") | DN600(24") |
|
Size (Tube OD) |

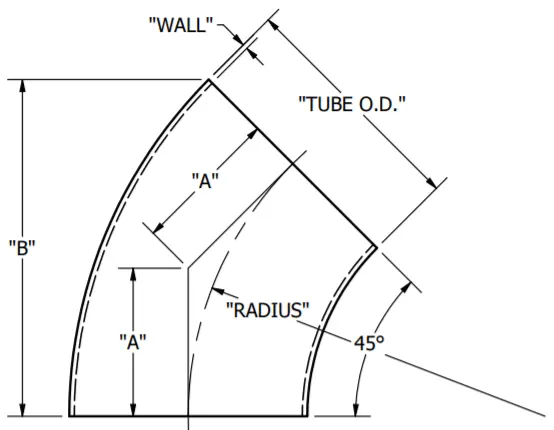

Part Number | Dimensions | |||||
| 304L | 316L | A | B | Radius | Tube OD | Wall Thickness | |
| 1/2" | NA | 2WK‐.50-1-316 | 0.310" | 0.707" | 0.750" | 0.500" | 0.065" |
| 3/4" | NA | 2WK‐.75-1-316 | 0.469" | 1.066" | 1.125" | 0.750" | 0.065" |
| 1" | 2WK‐1-1-304 | 2WK‐1-1-316 | 0.625" | 1.421" | 1.500" | 1.000" | 0.065" |
| 1-1/2" | 2WK‐1.5-1-304 | 2WK‐1.5-1-316 | 0.938" | 2.132" | 2.250" | 1.500" | 0.065" |
| 2" | 2WK‐2-1-304 | 2WK‐2-1-316 | 1.250" | 2.841" | 3.000" | 2.000" | 0.065" |
| 2-1/2" | 2WK‐2.5-1-304 | 2WK‐2.5-1-316 | 1.563" | 3.552" | 3.750" | 2.500" | 0.065" |
| 3" | 2WK‐3-1-304 | 2WK‐3-7-316 | 1.875" | 4.262" | 4.500" | 3.000" | 0.065" |
| 4" | 2WK‐4-1-304 | 2WK‐4-1-316 | 2.500" | 5.682" | 6.000" | 4.000" | 0.083" |
| 6" | 2WK‐6-1-304 | 2WK‐6-1-316 | 3.750" | 8.523" | 9.000" | 6.000" | 0.109" |
| 8" | 2WK‐8-1-304 | 2WK‐8-1-316 | 5.000" | 11.314" | 12.000" | 8.000" | 0.109" |
