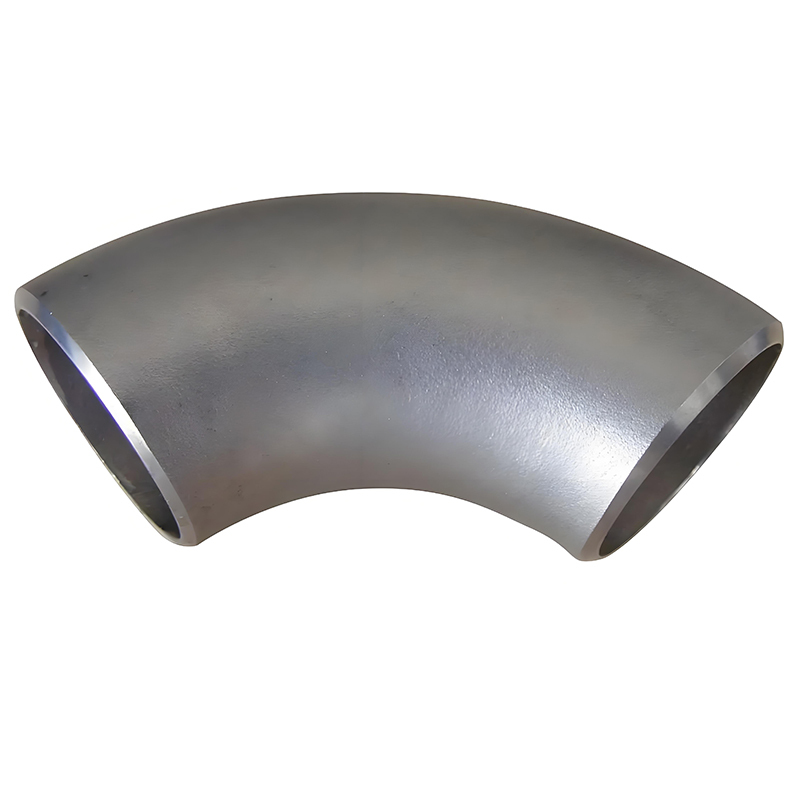

| DN10(3/8") | DN15(1/2") | DN20(3/4") | DN25(1") | DN40(1-1/2") |
| DN50(2") | DN80(3") | DN100(4") | DN125(5") | DN150(6") |
| DN200(8") | DN250(10") | DN300(12") | DN350(14") | DN400(16") |
| DN450(18") | DN500(20") | DN550(22") | DN600(24") |
| Nominal size | Outside Diameter at Bevel | Center to End | ||
| 45° Elbows | ||||
| DN | NPS | OD | B | |
| LR | 3D | |||
| 15 | 1/2 | 21.3 | 16 | - |
| 20 | 3/4 | 26.7 | 19 | 24 |
| 25 | 1 | 33.4 | 22 | 31 |
| 32 | 1¼ | 42.2 | 25 | 39 |
| 40 | 1½ | 48.3 | 29 | 47 |
| 50 | 2 | 60.3 | 35 | 63 |
| 65 | 2½ | 73.0 | 44 | 79 |
| 80 | 3 | 88.9 | 51 | 95 |
| 90 | 3½ | 101.6 | 57 | 111 |
| 100 | 4 | 114.3 | 64 | 127 |
| 125 | 5 | 141.3 | 79 | 157 |
| 150 | 6 | 168.3 | 95 | 189 |
| 200 | 8 | 219.1 | 127 | 252 |
| 250 | 10 | 273.0 | 159 | 316 |
| 300 | 12 | 323.8 | 190 | 378 |
| 350 | 14 | 355.6 | 222 | 441 |
| 400 | 16 | 406.4 | 254 | 505 |
| 450 | 18 | 457.0 | 286 | 568 |
| 500 | 20 | 508.0 | 318 | 632 |
| 550 | 22 | 559.0 | 343 | 694 |
| 600 | 24 | 610.0 | 381 | 757 |
| 650 | 26 | 660.0 | 406 | 821 |
| 700 | 28 | 711.0 | 438 | 883 |
| 750 | 30 | 762.0 | 470 | 964 |
| 800 | 32 | 813.0 | 502 | 1010 |
| 850 | 34 | 864.0 | 533 | 1073 |
| 900 | 36 | 914.0 | 565 | 1135 |
| 950 | 38 | 965.0 | 600 | 1200 |
| 1000 | 40 | 1016.0 | 632 | 1264 |
| 1050 | 42 | 1067.0 | 660 | 1326 |
| 1100 | 44 | 1118.0 | 695 | 1389 |
| 1150 | 46 | 1168.0 | 727 | 1453 |
| 1200 | 48 | 1219.0 | 759 | 1516 |
