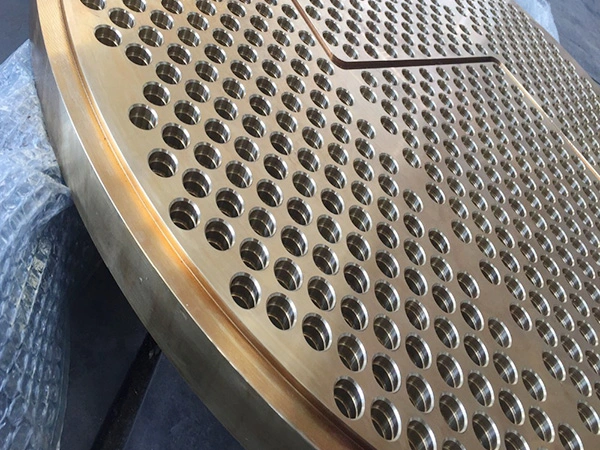

Copper Alloy Tube Sheet

SN Valve is a leading China copper alloy tube sheet manufacturer. The production process of copper alloy tube and plate usually includes raw material preparation, melting and casting, processing and moulding, heat treatment and surface treatment and other steps. Among them, melting and casting is the copper alloy raw materials into liquid state after melting and casting into the required shape; processing and forming through cutting, drilling, welding and other processes will be processed into the casting of the pipe plate in line with the requirements of the heat treatment can further improve the mechanical properties of copper alloys and corrosion resistance; surface treatment can improve the surface quality of the pipe plate and corrosion resistance.

SIZE:

DN10(3/8") DN15(1/2") DN20(3/4") DN25(1") DN40(1-1/2")

DN50(2") DN80(3") DN100(4") DN125(5") DN150(6")

DN200(8") DN250(10") DN300(12") DN350(14") DN400(16")

DN450(18") DN500(20") DN550(22") DN600(24")

Customized Size Consult Us

Send Inquiry

Product Description

Typical Hole Patterns

SN Valve is copper alloy tube sheet manufacturer and supplier in China who can wholesale copper alloy tube sheet. The most common types of holes experienced in tube sheet dilling are triangular, rotated triangular, square and rotated square. Each hole pattern presents its own dilling challnges. See typical pattern types below.

Applications

Tube plate is widely used in tubular heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators and other products. The metal material makes it not only rigid, but also has great heat conduction performance. The precision of tube plate processing, especially the tolerance of hole spacing and diameter, perpendicularity, and finish greatly affect the assembly and performance of the equipment listed above.

Standard and material grade

Forged Tube sheets, A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H,
A182 F316Ti, 317L, 904L, 1.4301,1.4307, 1.4401, 1.4571, 1.4541, 254Mo and etc.
Duplex stainless steel Tube sheets: UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760, 1.4462, 1.4410, 1.4501 and etc
Stainless steel Tube sheets ASTM A240 304 304L 316 316L , 904L
Titanium Tube sheets ASTM B265 GR1、GR2、GR3、GR5、GR7、GR12. tube sheet/baffle plate
Forged Titanium Tube sheets ASTM B381 GR F1、GR F2、GR F3、GR F5、GR F7、GR F12. tube sheet
BT1-00、BT1-0、BT1-2
Carbon steel tube sheet: A105, SA266.GR2，A350LF2, Q235, St37, St45.8, A42CP, E24 , A516 Gr60, A516 Gr 70,S235JR
Nickel alloy tube sheet:
inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy tube sheet: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc
Copper nickel tube sheet SB171 C70600,C71500 TUBESHEET/BAFFLE/FLANGE.
Naval Brass tube sheet SB171 C46400/C46500 TUBESHEET/BAFFLE/FLANGE
Aluminium bronze tube sheet
SB171 C61300/C61400/C63000 TUBESHEET/BAFFLE/FLANGE
Brass tube sheet, baffle ,flange.
Cladding tube sheet SA516.GR70+SB171 C71500 SA516.GR70+ASTM B265 GR2
SA240 316L +ASTM B265 GR2 Duplex+carbon steel

Specification

OD40-6000MM,Thickness from 5mm---300mm
