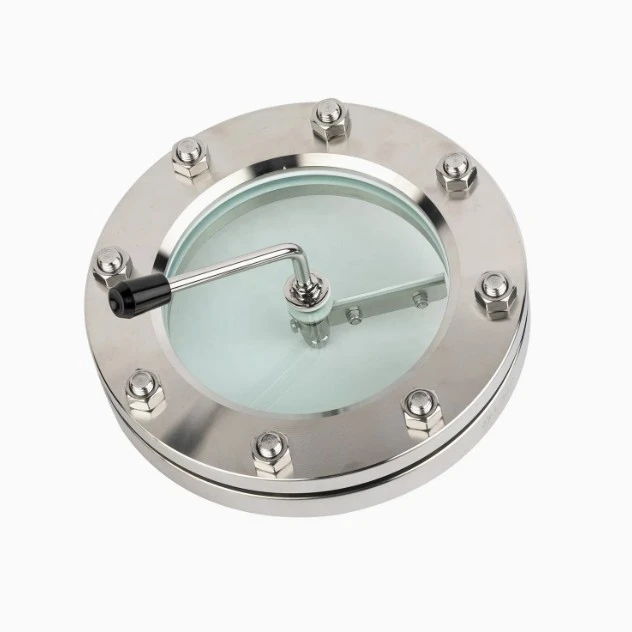

Wiper Flange Sight Glass

1.Wiper
Function: Used to clean dirt, vapor or condensation from the sight glass to ensure the clarity of the sight glass.
Type: Can be manual or automatic, according to the actual needs of choice.
2.Flange (Flange):
Function: As a connecting part between the sight glass and the pipe or vessel, it provides reliable sealing performance and prevents medium leakage.
Characteristics: Flange connection has the advantages of simple structure, easy installation and reliable sealing.
3.Sight Glass
Function: Allows the operator to clearly observe the state and flow of the medium inside the pipe or vessel.
Material: usually made of transparent, corrosion-resistant materials, such as tempered glass, quartz glass, etc..

1.Observation function:
Through the sight glass, the operator can intuitively observe the state and flow of the medium inside the pipeline or vessel, and discover abnormal conditions and take measures in time.
2.Cleaning function:
The scraper can clean the sight glass regularly to remove dirt, water vapor or condensation, keep the clarity of the sight glass and ensure the accuracy of observation.
3.Sealing Performance:
The flange connection provides reliable sealing performance to prevent media leakage and ensure production safety.

Wiper Flange Sight Glass is widely used in petroleum, chemical, pharmaceutical, food and other industrial production areas, especially in the need for frequent observation and the media may produce dirt, water vapor or condensation. For example:

In the petroleum refining process, you can observe the flow of crude oil, refined oil and other media.
In chemical production, you can observe the reaction state of the medium in the reaction kettle and liquid level changes.
In the pharmaceutical manufacturing, you can observe the flow and mixing of liquid, solvent and other media.
In food processing, you can observe the transportation status and temperature change of materials in the pipeline.
